TANK / SEAT FOR KTM 1290 SUPER DUKE R SPECIAL EDITION ABS 2016

FUEL PUMP

Item numbers

FUEL TANK PAU SUPER D. WHITE

6130701304428A

6130701314428A

1 627,86 £

Unit Price Incl. Tax

TANK CAP CPL.

61307008100

226,20 £

Unit Price Incl. Tax

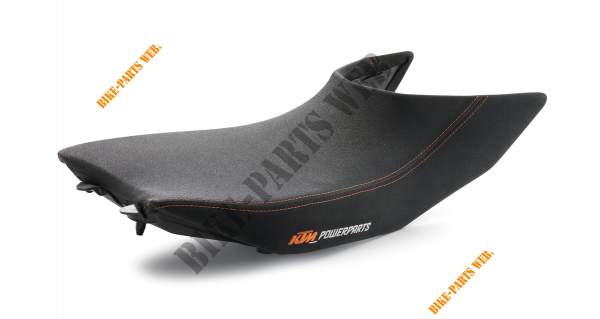

DRIVER SEAT CPL.

61307940000

180,36 £

Unit Price Incl. Tax

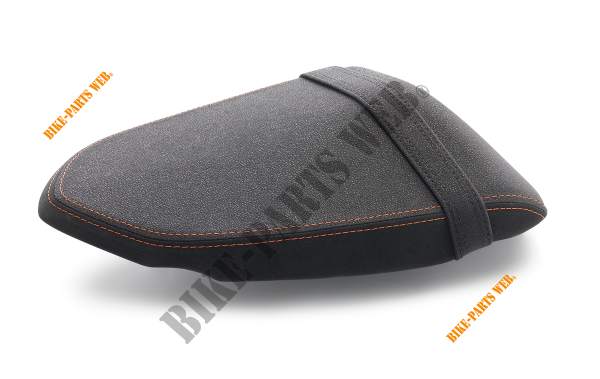

PILLION ERGO SEAT

61307947000

61607947000

144,12 £

Unit Price Incl. Tax

FUEL LEVER SENSOR

61307080000

61307080200

126,30 £

Unit Price Incl. Tax

DISTANCE RUBBER AIRBOX 03

60006001021

2,70 £

Unit Price Incl. Tax

AH SCREW DIN0912-M 5X25

0912050253

1,26 £

Unit Price Incl. Tax

COVER IGNITION LOCK

61307059000

10,32 £

Unit Price Incl. Tax

COVER FUEL TANK

61307058000

23,82 £

Unit Price Incl. Tax

RUBBER SLEEVE 5X7.6X13MM

76008052050

2,82 £

Unit Price Incl. Tax

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

1,26 £

Unit Price Incl. Tax

BUSHING 13X20X18, 5MM

76008052000

5,58 £

Unit Price Incl. Tax

FUEL HOSE PUMP

61307017050

21,90 £

Unit Price Incl. Tax

SHCS DIN 912 M8X40

0912080403

2,04 £

Unit Price Incl. Tax

BEARING SLEEVE, EXTERNAL

61007060000

6100716000001

7,56 £

Unit Price Incl. Tax

COLLAR BUSHING, FRONT TANK HOLDER
COLLAR BUSHING, FRONT TANK HOL

61007065000

6,78 £

Unit Price Incl. Tax

TANK MOUNTING FRONT L/S & R/S

61307021044

4,44 £

Unit Price Incl. Tax

SPECIAL SCREW M5X12

69008021160

3,06 £

Unit Price Incl. Tax

HH COLLAR SCREW M6X13 TX30

0024060136

1,74 £

Unit Price Incl. Tax

HOSE 5, 4X9, 4 NBR, METER

60007126001

10,98 £

Unit Price Incl. Tax

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

3,90 £

Unit Price Incl. Tax

GASKET FOR CONNECTING PIECE 03

60007024050

3,90 £

Unit Price Incl. Tax

AH SCREW DIN0912-M 5X16

0912050163

1,26 £

Unit Price Incl. Tax

SEAT SCREW M6X11.5 ISA30

58407011100

0900000601200

2,28 £

Unit Price Incl. Tax

WASHER DIN9021-A 6, 4

0021060003

0,78 £

Unit Price Incl. Tax

GASKET FUEL LEVEL SENSOR

60307080090

16,38 £

Unit Price Incl. Tax

VARIABLE ONE-EAR CLAMP 15, 7MM

00050157706

2,58 £

Unit Price Incl. Tax

PLUG CPC

7720701000030

28,68 £

Unit Price Incl. Tax

QUICK RELEASE-NIPPLE 03

54806008051

3,30 £

Unit Price Incl. Tax

TANKSPOILER LEFT

61308050000ECA

320,40 £

Unit Price Incl. Tax

TANKSPOILER RIGHT

61308051000ECA

Contact

RUBBER CABLE TIE 60MM 03

60011093060

3,30 £

Unit Price Incl. Tax

GASKET TANK CAP

60307008190

11,82 £

Unit Price Incl. Tax

FRAME COVER L/S

61303085000

16,50 £

Unit Price Incl. Tax

FRAME COVER RIGHT

61303086000

61403086000

16,50 £

Unit Price Incl. Tax

KNEE PAD L/S

61303091000

26,34 £

Unit Price Incl. Tax

KNEE PAD R/S

61303092000

26,34 £

Unit Price Incl. Tax

INSULATION MAT MIDDLE

61306095010

19,74 £

Unit Price Incl. Tax

INSULATION MAT L/S

61306095020

16,44 £

Unit Price Incl. Tax

INSULATION MAT R/S

61306095030

16,44 £

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of KTM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
