FRONT FORK / TRIPLE CLAMP FOR KTM 1290 SUPER DUKE R SPECIAL EDITION ABS 2016

FRONT FORK (PARTS)

Item numbers

FORK WP SUPERDUKE 2017

14188N2201

14188Q2201

2 127,90 £

Unit Price Incl. Tax

HH COLLAR SCREW M6X20 TX30

0025060206S

2,04 £

Unit Price Incl. Tax

STEERING SUPERDUKE DAMPER CPL.

16181N52ES

16181N52E

204,30 £

Unit Price Incl. Tax

HH COLLAR SCREW M8X25 TX40

0025080256S

3,36 £

Unit Price Incl. Tax

TOP TRIPLE CLAMP

6130193422004

279,66 £

Unit Price Incl. Tax

SHCS M10X30 TX45

0035100309S

5,22 £

Unit Price Incl. Tax

HANDLEBAR CLAMP

6130103800033S

63,24 £

Unit Price Incl. Tax

SHCS M8X30 TX45

0035080306

2,88 £

Unit Price Incl. Tax

BOTTOM TRIPLE CLAMP CPL.

6130193222004

340,50 £

Unit Price Incl. Tax

INSTRUMENTS BRACKET CPL.

6130104304433

179,10 £

Unit Price Incl. Tax

CASE INSTRUMENTS BRACKET

61301046000

18,18 £

Unit Price Incl. Tax

SPECIAL SCREW M5X12

69008021160

3,06 £

Unit Price Incl. Tax

STEER.HEAD SCREW M22X1, 5 SW27

6030103600001

21,42 £

Unit Price Incl. Tax

STEER.HEAD NUT

57301036100

17,28 £

Unit Price Incl. Tax

STEERING HEAD COVER 05

61001086000

9,48 £

Unit Price Incl. Tax

STEARING HEAD GASKET TOP

54601184000

4,26 £

Unit Price Incl. Tax

TAPERED ROLLER BEARING CPL. 06

54201081100

O-RING SUPPORT W. SEALING LIP

77701084000

13,50 £

Unit Price Incl. Tax

HH COLLAR SCREW M8X20

0025080206

2,88 £

Unit Price Incl. Tax

AH SCREW M10X20 SET

00501020S1

00501020S1T

4,50 £

Unit Price Incl. Tax

SPECIAL SCREW M8X26 WS=10

59001037000

2,76 £

Unit Price Incl. Tax

HEXAGON NUT DIN0934-M 8

0934080003

1,02 £

Unit Price Incl. Tax

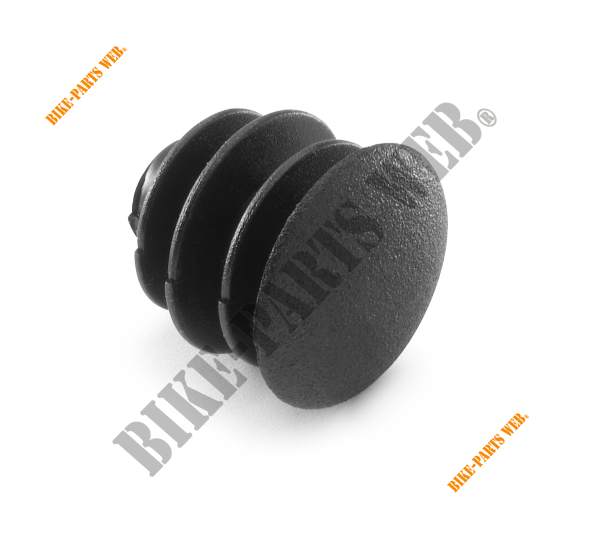

PLUG SFL13

55009086000

1,68 £

Unit Price Incl. Tax

STEAR. HEAD REP. KIT 1290 SD-R

61301080044

69,36 £

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of KTM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
