FRONT WHEEL

REAR WHEEL FOR KTM 1290 SUPER DUKE R SPECIAL EDITION ABS 2016

WIRING HARNESS

Item numbers

REAR WHEEL 6X17'' OR. W.DECAL

6141010100004A

771,54 £

Unit Price Incl. Tax

REAR WHEEL AXLE

61310085100

61310385100

379,38 £

Unit Price Incl. Tax

WAVE BRAKE DISC REAR 240X5MM

61310960000

135,06 £

Unit Price Incl. Tax

SENSOR GEAR REAR

76042121000

40,32 £

Unit Price Incl. Tax

HH COLLAR SCREW M8X25 TX40

0025080256S

3,36 £

Unit Price Incl. Tax

SAFETY WIRE R/S

61310187000

6,00 £

Unit Price Incl. Tax

AXLE NUT M50X1.5

61310186000

61310186100

30,18 £

Unit Price Incl. Tax

WASHER 69X1

61310016000

6,00 £

Unit Price Incl. Tax

CLUTCH HUB HOUSING CPL.

61310010044

379,38 £

Unit Price Incl. Tax

HH COLLAR SCREW M16X1, 5X55

61310021000

6,78 £

Unit Price Incl. Tax

SHAFT SEAL RING 52X68X8

0760526880

5,22 £

Unit Price Incl. Tax

WASHER 94X1

61310019000

6,78 £

Unit Price Incl. Tax

O-RING 84, 00X3.5 NBR70

0770840035

1,50 £

Unit Price Incl. Tax

CIRCLIP DIN471-78X2.5

0471078250

1,68 £

Unit Price Incl. Tax

CIRCLIP DIN472-68X2.5

0472068250

1,68 £

Unit Price Incl. Tax

NEEDLE BEARING RNA4909-2RSR-XL

0617456822

36,24 £

Unit Price Incl. Tax

DEEP GROOVE BALL BEARING 61909

0625061909

36,24 £

Unit Price Incl. Tax

SPACER RING

61310014000

61310014100

26,34 £

Unit Price Incl. Tax

SPROCKET SUPPORT CPL.

6131005404433S

213,42 £

Unit Price Incl. Tax

SHOCK ABSORBER

61310059000

61310059100

15,42 £

Unit Price Incl. Tax

SPROCKET STEEL DUKE 1290 Z38

61310151038

38,94 £

Unit Price Incl. Tax

SELF LOCKING NUT M8 10.9

54310086200

1,86 £

Unit Price Incl. Tax

JAR DAMPER CARRIER

6131005000033S

51,12 £

Unit Price Incl. Tax

SHIM 50X1

76010116000

5,46 £

Unit Price Incl. Tax

HEX. NUT DIN 6923 M10X1.25-10

06923100003

1,62 £

Unit Price Incl. Tax

AXLE NUT M35X1.5

76010186000

61310086000

26,34 £

Unit Price Incl. Tax

SAFETY WIRE L/S

76010187000

5,46 £

Unit Price Incl. Tax

IGUS BEARING D=50

76010052000

14,16 £

Unit Price Incl. Tax

VALVE ANGLED

61009076100

11,76 £

Unit Price Incl. Tax

BRAKE CALIPER SUPPORT

6131307500033S

61313075000C1

153,84 £

Unit Price Incl. Tax

SAFE ARMING WIRE

61310010011

6,78 £

Unit Price Incl. Tax

CENTERING BOLT M8

61310113000

61310213000

6,78 £

Unit Price Incl. Tax

REAR SPROCKET SCREW M8X18 S

61310052000

61310052100

3,12 £

Unit Price Incl. Tax

CHAIN SPROCKET 17-T DAMPED 03

60033129017

40,14 £

Unit Price Incl. Tax

CHAIN DID 525 VZ2 118 ROLLERS

61310165118

61310265118

136,20 £

Unit Price Incl. Tax

RIVET LINK FOR CHAIN DID 525 VZ

61310066000

61310066100

7,74 £

Unit Price Incl. Tax

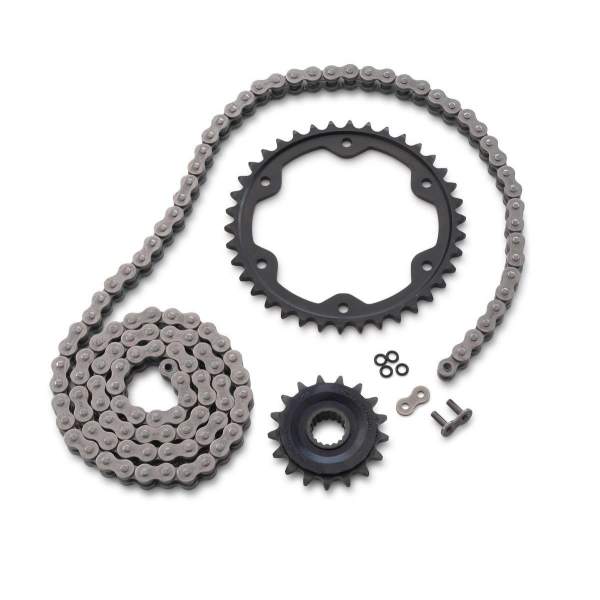

DRIVETRAIN SET ST 17Z/38Z

00050002029

SPA217G383N118H

193,74 £

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of KTM, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
