Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

AIR FILTER

TANK / SEAT FOR KTM 690 DUKE R ABS 2015

FUEL PUMP

Item numbers
TANK / SEAT KTM MOTO 690 2015 DUKE 690 DUKE R ABS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
FUEL TANK CPL. BLACK-MATT

7600701304433A  

Unit Price Incl. Tax

2
TANK PLUG

76007008000  

Unit Price Incl. Tax

3
TANK INSERT CPL.

76007008060  

Unit Price Incl. Tax

4
CLAMP OETIKER 8.6MM

76007013090  

Unit Price Incl. Tax

5
GASKET TANK PLUG

76007008052  

Unit Price Incl. Tax

6
GAS-LEVEL SENSOR 06

61007080000  

Unit Price Incl. Tax

7
AH SCREW DIN0912-M 5X16

0912050163  

Unit Price Incl. Tax

8
GASKET

76007027050  

Unit Price Incl. Tax

9
CONNECTION

76007027000  

Unit Price Incl. Tax

10
HH COLLAR SCREW M5X16 TX30

0025050166  

Unit Price Incl. Tax

11
RUBBER SLEEVE 5X7.6X13MM

76008052050  

Unit Price Incl. Tax

12
FLAT HEAD SCREW DIN7991-M 6X12

0991060126  

Unit Price Incl. Tax

13
BUSHING 13X20X18, 5MM

76008052000  

Unit Price Incl. Tax

14
HH COLLAR SCREW M6X25 TX30

0025060256  

Unit Price Incl. Tax

15
COLLAR BUSH. 6, 2X10X21X14MM 08

69007028000  

Unit Price Incl. Tax

16
RUBBER GROMMET, TANK MOUNTING

69007027000  

Unit Price Incl. Tax

17
SEAT ERGO DRIVER
SEAT ERGO DRIVER

76007940000  

Contact
18
SEAT SOZIUS

76007047000  

Unit Price Incl. Tax

19
SEAT RUBBER 10 MM

75007046010  

Unit Price Incl. Tax

20
AH-COLLAR SCREW M8X25 ISA45

0035080256  

Unit Price Incl. Tax

21

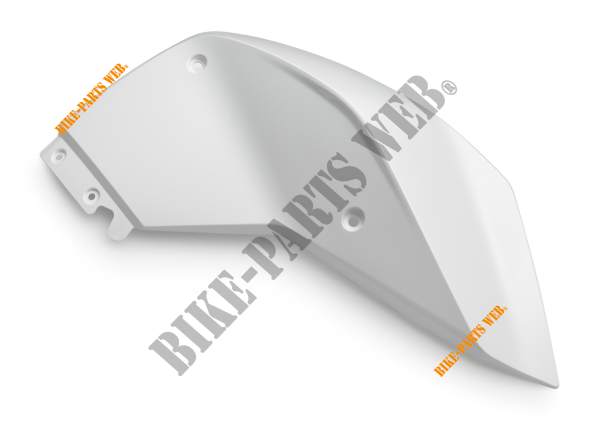

SPOILER R/S WHITE
SPOILER R/S WHITE

7600805100028  

Unit Price Incl. Tax

22
SPOILER L/S WHITE
SPOILER L/S WHITE

7600805000028  

Unit Price Incl. Tax

23
SHCS ISO 14580 M6X12

014580060126  

Unit Price Incl. Tax

24
SPECIAL WASHER

61108045000  

Unit Price Incl. Tax

25
HH COLLAR SCREW M6X10 TX30

0024060106  

Unit Price Incl. Tax

26
QUICK RELEASE-NIPPLE 03

54806008051  

Unit Price Incl. Tax

27
AH SCREW DIN0912-M 5X30

0912050303  

Unit Price Incl. Tax

28
SHCS DIN 912 M5X8

0912050083  

Unit Price Incl. Tax

29
TUBE VENTILATION

76007013010  

Unit Price Incl. Tax

30
HOSE EVAPORATIVE CANISTER

76007013020  

Unit Price Incl. Tax

31
RUBBER STRIP 85X25X3 MM

54601097000  

Unit Price Incl. Tax

32
HOSE 5, 4X9, 4 NBR, METER

60007126001  

Unit Price Incl. Tax

33
HH COLLAR SCREW M6X16 TX30 SL

0025060166S  

Unit Price Incl. Tax

34
SEAT PIN

76007940030  

Unit Price Incl. Tax

35
EJOT PT SCREW K50X12

0081050121  

Unit Price Incl. Tax

36
SHEET F. SEAT PIN

76007940020  

Unit Price Incl. Tax

37
PILLIONSEAT COVER CPL. WHITE
PILLIONSEAT COVER CPL. WHITE

7600794004428  

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the TANK / SEAT of your KTM 690 DUKE R ABS of 2015. Let us know if you have any questions.
