FRONT WHEEL

REAR WHEEL FOR KTM 690 SMC R 2013

WIRING HARNESS

Item numbers

REAR WHEEL CPL.5X17'' TUBELESS

7501010104404

7501010104404S

623,46 £

Unit Price Incl. Tax

REAR WHEEL HUB CPL.

75310010044

7531001004491

219,90 £

Unit Price Incl. Tax

BEARING SPACER TUBE L=106MM 07

75310011000

21,00 £

Unit Price Incl. Tax

GR.BALL BEAR. 6205-2RSHC3HMTF7

0625062052

14,82 £

Unit Price Incl. Tax

CIRCLIP DIN0472-52X2

0472052200

1,68 £

Unit Price Incl. Tax

SHAFT SEAL RING 30X52X7

0760305271

5,22 £

Unit Price Incl. Tax

SPACER BUSH. REAR WHEEL R/S 06

60110013000

18,54 £

Unit Price Incl. Tax

SPACER RING 03

60010015000

2,88 £

Unit Price Incl. Tax

REAR RIM 5, 0X17 TL

7501017000004

7501047000004S

298,50 £

Unit Price Incl. Tax

SPOKE M4, 5X196-16G 17'' INOX

75010073196

4,68 £

Unit Price Incl. Tax

SPOKE M4, 5X0, 75X181

81210171181

4,02 £

Unit Price Incl. Tax

SPOKE NIPPLE, QUADRAX M4, 5

81210072000

81210072200

1,50 £

Unit Price Incl. Tax

GASKET RUB. 17X5'' CPL.W. VALVE
GASKET RUB. 17X5'' CPL.W. VALV

75010177044

41,16 £

Unit Price Incl. Tax

RIM BAND 17''X 5.00''

81210073000

75010073000

17,70 £

Unit Price Incl. Tax

VALVE CPL.

81210076000

7,98 £

Unit Price Incl. Tax

REAR SPROCKET ORANGE 40-T

5841005104004

62,58 £

Unit Price Incl. Tax

REAR SPROCKET ORANGE 42-T

5841005104204

62,58 £

Unit Price Incl. Tax

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

3,36 £

Unit Price Incl. Tax

HEX NUT EN 1661 M8 WS13

06923080003

1,02 £

Unit Price Incl. Tax

SPROCKET SUPPORT CPL. SILVER

7501005004491

194,04 £

Unit Price Incl. Tax

SPACER BUSH. SPROCKET SUPP. 06

60110012000

18,54 £

Unit Price Incl. Tax

NILOS RING 6006AV

60110016000

5,46 £

Unit Price Incl. Tax

BALL BEARING 6006 DDU2CG23S6NM

0625060060

14,82 £

Unit Price Incl. Tax

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

18,54 £

Unit Price Incl. Tax

RUBBER DAMPING BLOCK '91

54610459000

5,58 £

Unit Price Incl. Tax

REAR BRAKE DISK D=240MM 03

60010060000

121,62 £

Unit Price Incl. Tax

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Contact

WHEEL SPINDLE CPL.

75310085144

79,62 £

Unit Price Incl. Tax

CHAIN TENSIONER R/S LC8 03

60010084000

19,50 £

Unit Price Incl. Tax

COLLAR NUT WH. SPINDLE REAR 03

60010086000

12,30 £

Unit Price Incl. Tax

CHAIN DID 118 LINKS

78010167118

78010267118

92,10 £

Unit Price Incl. Tax

RIVETING LINK FOR 78010167118

78010166100

78010266100

4,50 £

Unit Price Incl. Tax

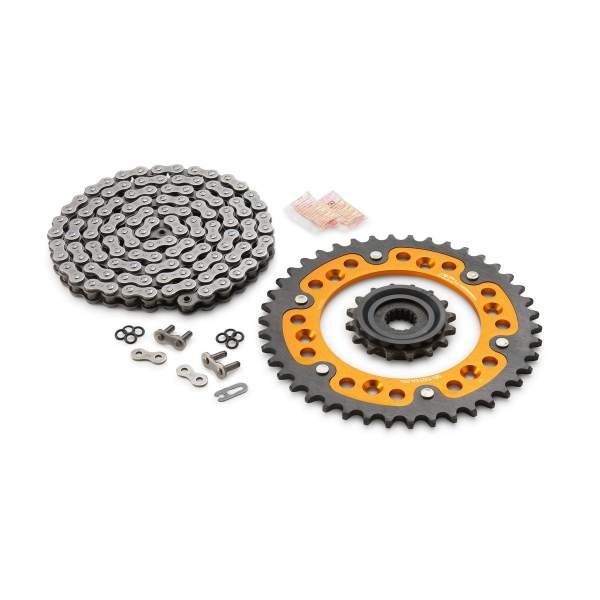

DRIVETRAIN KIT ST 16Z/42Z

00050002024

SPA216G42KM118B

172,08 £

Unit Price Incl. Tax

REAR WHEEL REP. KIT

75010015000

55,26 £

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the REAR WHEEL of your KTM 690 SMC R of 2013. Let us know if you have any questions.
