FRAME FOR KTM 300 XC-W TPI ERZBERG EDITION 2020

ENGINE GUARD

Item numbers

FRAME 557T2

55703101000EB

1 498,62 £

Unit Price Incl. Tax

SUBFRAME

79103002100

335,46 £

Unit Price Incl. Tax

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

3,36 £

Unit Price Incl. Tax

TANK REST RUBBER

79607012000

17,10 £

Unit Price Incl. Tax

HEXAGON NUT DIN0934-M 8

0934080003

1,02 £

Unit Price Incl. Tax

REAR FRAME BIT

79103002010

8,58 £

Unit Price Incl. Tax

ENGINE BRAC.SCR. M10X115

77203014000

9,72 £

Unit Price Incl. Tax

AH-COLLAR SCREW M8X15 TORX45

0035080156S

3,36 £

Unit Price Incl. Tax

WIRE HOLDER / FUEL VENTILATION

79107013010

4,32 £

Unit Price Incl. Tax

SPECIAL SCREW M8X26 WS=10

59001037000

2,76 £

Unit Price Incl. Tax

TANK ROLLER 12X26X12 '98

50307014000

8,58 £

Unit Price Incl. Tax

HH COLLAR SCREW M6X12 TX30

0026060136

0025060126

1,74 £

Unit Price Incl. Tax

ENGINE BRACE, LEFT 250/300 TPI

5570301300001S

45,66 £

Unit Price Incl. Tax

ENGINE BRACE, RIGHT 250/300 TPI
ENGINE BRACE, RIGHT 250/300 TP

5570301400001S

45,66 £

Unit Price Incl. Tax

SPECIAL SCREW M8X18 TORX45 SS

79003003000

3,18 £

Unit Price Incl. Tax

CABLE TIE 300/4, 8MM BLACK

44011076305

0,24 £

Unit Price Incl. Tax

CABLE TIE 140/ 3, 5 MM SCHWARZ
KABELBAND 140/3, 5 MM SCHWARZ

44011176140

0,12 £

Unit Price Incl. Tax

HH COLLAR SCREW M 5X12 WS=6

0014050123

1,74 £

Unit Price Incl. Tax

BUSH F. FRAME PROTECTION 03

54803092060

4,50 £

Unit Price Incl. Tax

CABLE HOLDER THROTTLE CABLE GUIDE
CABLE HOLDER THROTTLE CABLE GU

79711013000

13,86 £

Unit Price Incl. Tax

CABLE BRACKET D8

61111041000

79711013010

2,64 £

Unit Price Incl. Tax

HH COLLAR SCREW M8X30

0025080306

2,88 £

Unit Price Incl. Tax

HH COLLAR SCREW M6X40 TX30

0025060406

1,74 £

Unit Price Incl. Tax

WASHER DIN0125-A 6, 4

0125060003

0,90 £

Unit Price Incl. Tax

WIRE HOLDER LE 19

79111093000

3,36 £

Unit Price Incl. Tax

SELF LOCKING NUT M10 CU WS=14

54310086100

2,10 £

Unit Price Incl. Tax

SCREW FOR PLASTIC K50X18 T20

0081050181

1,74 £

Unit Price Incl. Tax

SHCS M8X20 TX45

0035080206S

3,36 £

Unit Price Incl. Tax

FOOTREST L/S EXC 2017

79603040000

33,84 £

Unit Price Incl. Tax

FOOTREST SPRING L/S 2016

79003045000

3,72 £

Unit Price Incl. Tax

FOOTREST R/S EXC 2017

79603041000

33,84 £

Unit Price Incl. Tax

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

7,98 £

Unit Price Incl. Tax

FOOTREST SPRING R/S 2016

79003044000

3,72 £

Unit Price Incl. Tax

WASHER DIN 125 A 10.5

0125100003

0,90 £

Unit Price Incl. Tax

PIN DIN 0094-3.2X25 NIRO

0094032253

0094032250

0,90 £

Unit Price Incl. Tax

FOOTREST-SET

79603040033

85,08 £

Unit Price Incl. Tax

ANGLE PIECE '97

50303089000

3,84 £

Unit Price Incl. Tax

PREFORMED HOSE 6X10 ECO

50430087000

8,70 £

Unit Price Incl. Tax

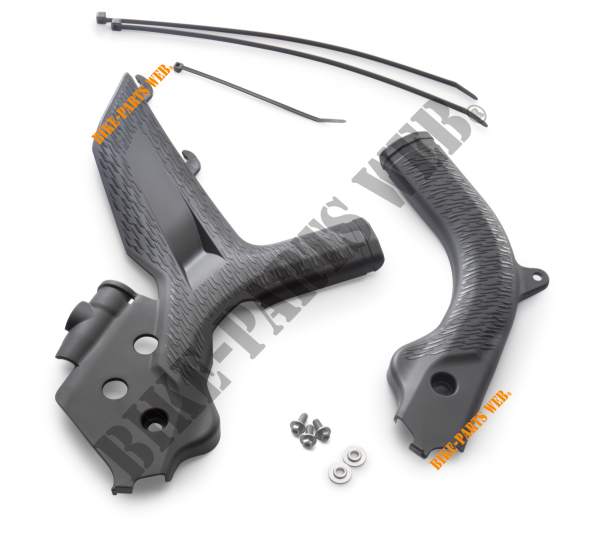

FRAME PROTECTION SET

7910309400030

7910309410030

32,28 £

Unit Price Incl. Tax

CHAIN SLIDING KIT BELOW CPL.16

79003053010

10,20 £

Unit Price Incl. Tax

SPROCKET COVER KIT

55403096010

17,28 £

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRAME of your KTM 300 XC-W TPI ERZBERG EDITION of 2020. Let us know if you have any questions.
