CYLINDER

CRANKSHAFT / PISTON FOR KTM 250 XCF-W 2006

CARBURETOR

Item numbers

CRANKSHAFT EXC-F

77030118000

77030118300

718,80 £

Unit Price Incl. Tax

CONNECT. ROD REPAIR SET

77030015144

77030015344

268,74 £

Unit Price Incl. Tax

THRUST WASHER 30, 5X45X0, 10

56030081000

2,34 £

Unit Price Incl. Tax

THRUST WASHER 30, 7X47X0, 15

56030081100

2,34 £

Unit Price Incl. Tax

THRUST WASHER 30, 5X45X0, 30

56030081200

2,34 £

Unit Price Incl. Tax

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

51,36 £

Unit Price Incl. Tax

HEX.NUT L/SH M18X1, 5

54630029000

8,82 £

Unit Price Incl. Tax

LOCK WASHER VSK 18

58132072000

2,04 £

Unit Price Incl. Tax

SH.SEAL RING 35X42X4 B10FNIB

0760354240

Contact

WOODRUFF KEY 5X6, 5 HARDED

6946005

1,14 £

Unit Price Incl. Tax

SH. SEAL RING 30X42X4 B10F

0760304240

5,22 £

Unit Price Incl. Tax

COLLAR NUT, M12X1, RIGHT

49030021000

49030021100

7,26 £

Unit Price Incl. Tax

SPRING WASHER DIN0137-B12

0137120000

0,90 £

Unit Price Incl. Tax

WOODRUFF KEY DIN6888-3X5X13

0888030050

0,90 £

Unit Price Incl. Tax

PRIMARY GEAR 22T.

77032000122

77132000022

103,38 £

Unit Price Incl. Tax

PISTON PIN BOLT D=16MM 05

77030033000

24,60 £

Unit Price Incl. Tax

CIRCLIP 05

77030074000

4,32 £

Unit Price Incl. Tax

PISTON I CPL. 05

77030007000I

250,20 £

Unit Price Incl. Tax

PISTON II CPL. 05

77030007000II

250,20 £

Unit Price Incl. Tax

OIL SCRAPER RING

77030032000

77130032000

33,90 £

Unit Price Incl. Tax

COMPRESSION RING

77030030000

77030030200

33,90 £

Unit Price Incl. Tax

RADIAL SHAFT SEAL 14X24X6 B

0760142460

4,26 £

Unit Price Incl. Tax

PISTON KIT GR.II 250 MX/ENDURO

00050000013

Contact

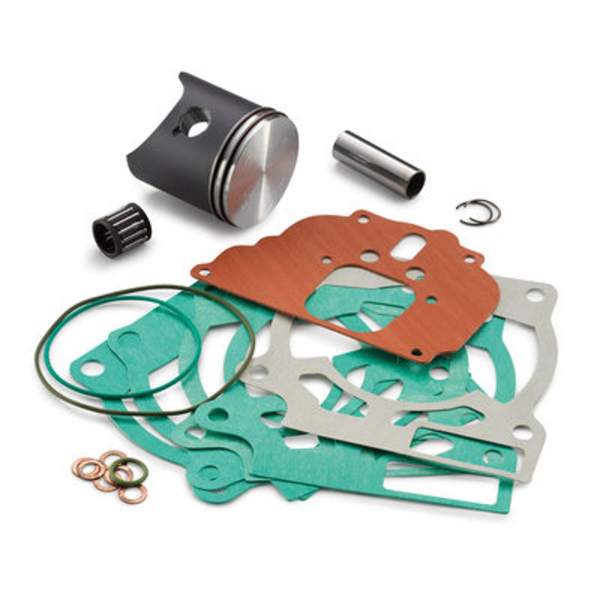

PISTON KIT GR.I 250 MX/ENDURO

00050000033

Contact

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from KTM. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your KTM 250 XCF-W of 2006. Let us know if you have any questions.

Select your KTM XCF-W model from 2006
